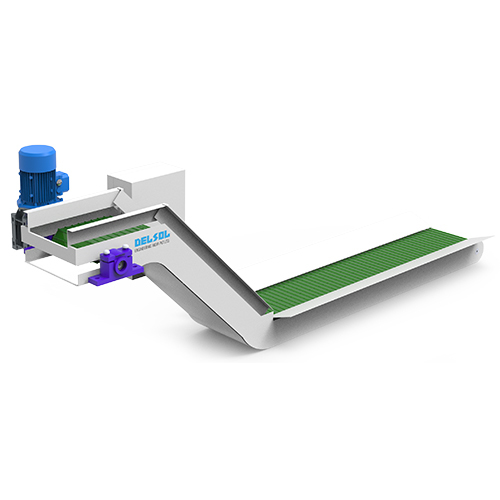

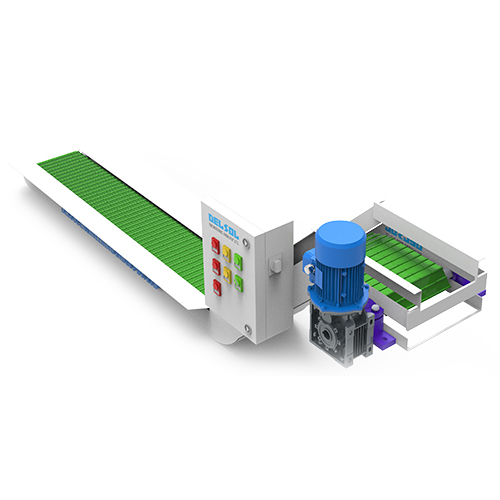

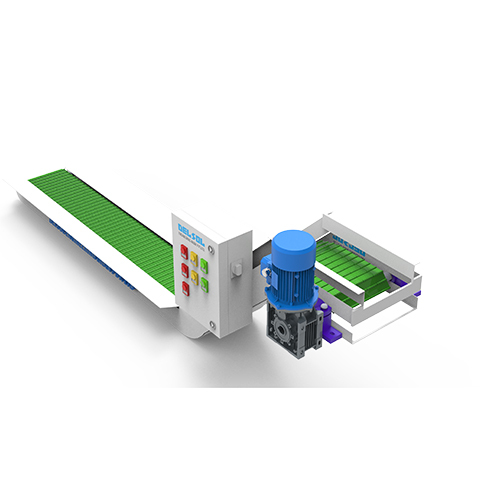

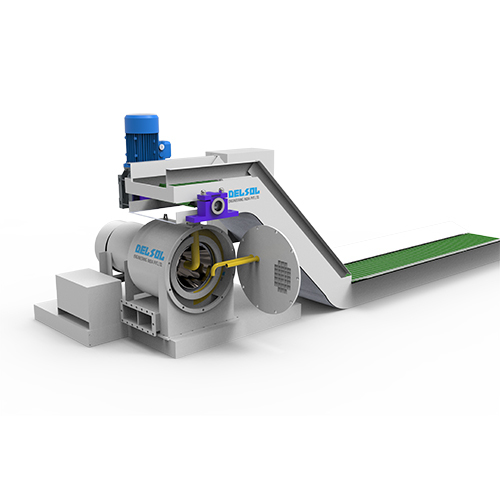

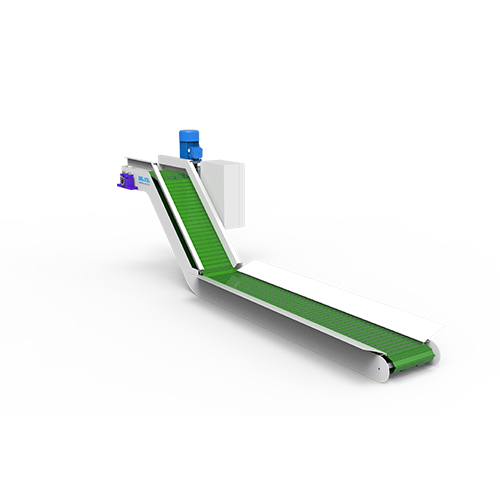

Slat Chip Conveyor

About Slat Chip Conveyor

BASIC OVERVIEW

• Product Name: Slat Chip Conveyor
• Function: Efficiently transports and handles metal chips, swarf, and scrap from machining processes.
• Material Handled: Long curly chips, heavy steel chips, bushy or stringy chips, and scrap pieces.

TECHNICAL DETAILS

WORKING PRINCIPLE

1. Chips fall onto the moving slats (hinged plates).
2. The slats move linearly via chain drive, transporting chips to the discharge end.
3. Chips are either collected in a bin or dumped into a centralized system.
4. Coolant (if present) is drained separately through perforated slats or dedicated lines.

APPLICATION INDUSTRIES

• CNC & VMC Machines
• Machining Centres
• Automotive & Aerospace Industries
• Steel and Casting Units
• Fabrication Shops
• Gear Cutting & Hobbing Machines

ADVANTAGES

• Handles long, bushy, or stringy chips effectively
• Robust design for heavy-duty operation
• Low maintenance due to fewer moving parts
• Can be combined with filtration systems
• Customizable for machine layout and space
