Cartridge Filters

Cartridge Filters About

WHAT IS A CARTRIDGE FILTER?

A cartridge filter is a modular filtration device used to remove contaminants from liquids or gases. It consists of a replaceable filter cartridge housed inside a filter housing. The media inside the cartridge traps solid particles while allowing clean fluid to pass through.

WORKING PRINCIPLE

1. Contaminated fluid enters the filter housing.
2. Fluid flows through the cartridge element (outside-to-inside or inside-to-outside).
3. Solids are captured on the cartridge surface or within its depth.
4. Filtered fluid exits, leaving particles trapped.
5. Cartridge is replaced or cleaned periodically.

TYPES OF CARTRIDGE FILTERS

By Media Type:

Type	Description
Depth Filters	Capture particles throughout the media thickness (e.g.spun-bonded PP).
Surface Filters	Capture particles only on the surface (e.g. pleated media).
Membrane Filters	Fine filtration for microbial or sub-micron particles.

By Cartridge Material:

• Polypropylene (PP)general purpose, chemical-resistant
• Glass Fiberhigh dirt holding capacity
• PTFEchemical/pharmaceutical use
• Stainless Steel Mesh washable, reusable

By Structure:

• Pleated Cartridge high surface area, long life
• Melt-Blown Cartridge economical, depth filtration
• Wound Cartridgelayered filtration
• Sintered Cartridge metal or plastic, for harsh environments

Industrial:

• Coolants, cutting fluids, hydraulic oils
• Paints and inks
• RO and water pre-filtration

Water Treatment:

• Drinking water, RO, and DI systems
• Well and borewell water filtration

Pharma & Food:

• Injectable water
• Juice/beverage filtration
• Biotech/sterile environments

Process Industries:

• Petrochemicals, Power plants
• Paper and pulp
• Metal processing

ADVANTAGES

• High filtration efficiency
• Easy cartridge replacement
• Modular and compact design
• Suitable for fine and coarse filtration
• Available in a wide range of materials

LIMITATIONS

• Cartridge replacement cost
• Not suitable for high solids load
• Manual intervention needed for replacement

SELECTION CHECKLIST

Factor	Considerations
Micron Rating	Based on size of contaminants
Flow Rate	Depends on process requirements
Fluid Properties	Temperature, chemical composition
Cartridge Type	Depth vs. pleated, washable vs. disposable
Housing Material	SS304/316 / MS for industrial Use.
Operating Pressure	Ensure cartridge & housing can handle it
Changeout Frequency	Based on dirt-holding capacity

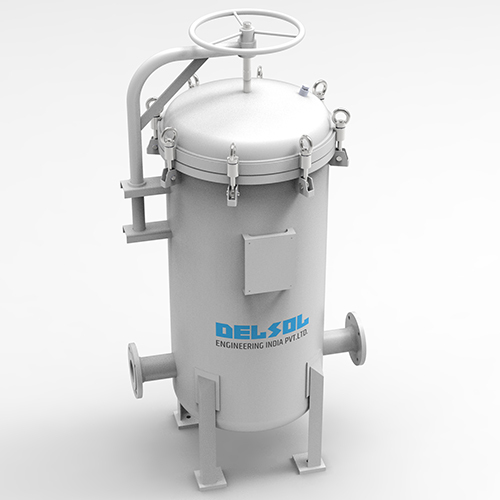

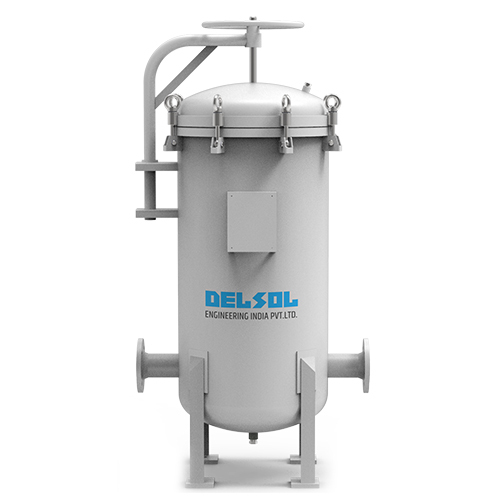

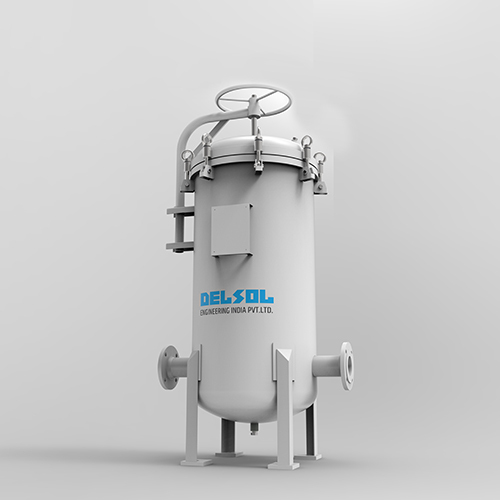

Premium Oil Filtration Solution for Industry

Our cartridge filters are engineered for industrial oil filtration, offering top-tier performance and reliability. Fabricated to stringent manufacturing standards and available in a range of sizes and colors (RAL 7035, Appel Green), they adapt seamlessly to various machinery and operational scales. With robust build quality, these filters resist demanding conditions while maintaining consistent filtration to protect your equipment and prolong oil life.


Customizable Specs for Diverse Needs

These cartridge filters come in multiple diameter, height, and width options, spanning inlet and outlet sizes to fit existing systems. Their flexibility enables integration with both new and retrofit installations. The 2.5 to 10 bar pressure rating ensures compatibility with a wide range of industrial oil filtration processes, providing peace of mind and operational continuity.
