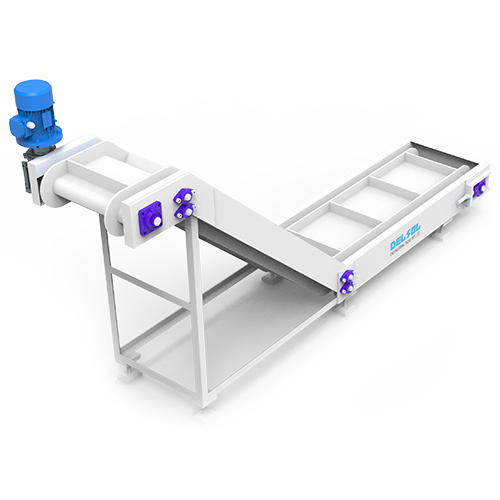

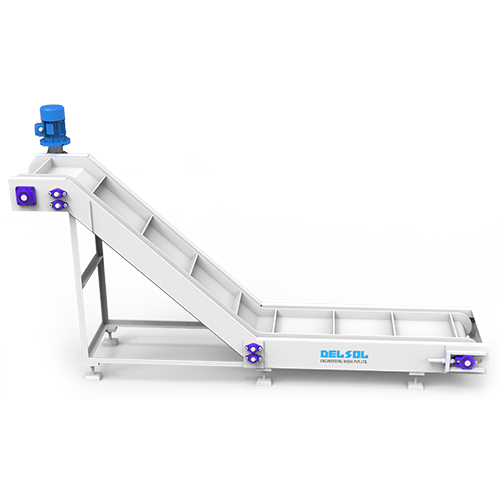

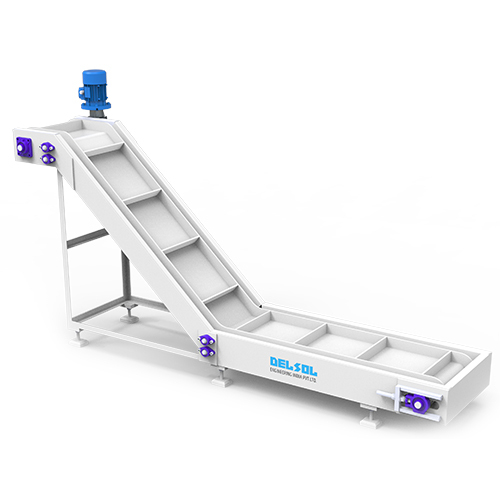

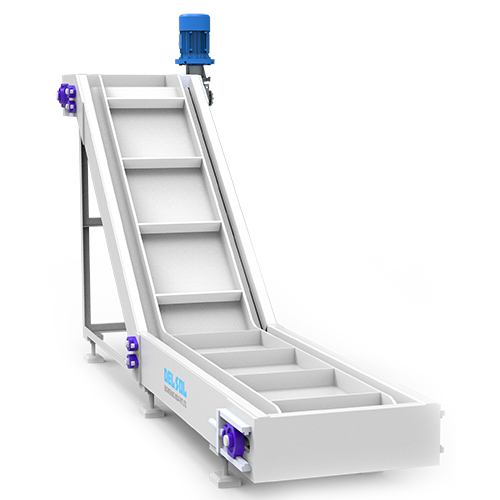

Scraper Conveyor
Scraper Conveyor
Scraper Conveyor
Scraper Conveyor
Scraper Conveyor
Scraper Conveyor
Scraper Conveyor
Scraper Conveyor
Scraper Conveyor
Scraper Conveyor
Scraper Conveyor
Scraper Conveyor

Scraper Conveyor




About Scraper Conveyor

WHAT IS A SCRAPER CONVEYOR?

A Scraper Conveyor (also known as a drag conveyor or slat conveyor) is a mechanical system used for horizontal or inclined transport of bulk materials, chips, swarf, dust, or sludge using scraper blades that drag the material along the bottom of a trough or channel.

WORKING PRINCIPLE

  1. Material (chips, dust, sludge) enters the conveyor trough.
  2. Scraper plates mounted on a chain or shaft move continuously inside a closed or semi-closed channel.
  3. The scrapers drag the material along the bottom surface toward the discharge point.
  4. Material is collected, dumped, or sent to bins, and the chain/scrapers loop back to collect more.

TYPES OF SCRAPER CONVEYORS

Type

Description

Application

Horizontal Scraper

For floor-mounted horizontal transfer

Chip collection, ETP sludge

Inclined Scraper

Moves material at an angle (up to 60 deg )

Loading into bins, presses

U-type/Channel Type

U-trough with chain drag system

Swarf and sludge

Flat Bottom Type

Scrapers move over flat bed

Dry chips and dust

Heavy-duty Scraper

For high-load handling

Steel plant, furnace slag

KEY TECHNICAL FEATURES

Parameter

Typical Range

Conveying Capacity

50 kg/hr to 10 TPH

Trough Width

100 mm to 800 mm

Conveyor Length

1 m to 30 m

Incline Angle

0 deg to 60 deg

Chain Type

Roller chain / Pin bush / Drag chain

Scraper Material

MS, SS304, Hardox, Nylon

Housing Material

MS powder-coated / SS304

Motor Power

0.5 HP to 5 HP

Discharge Height

As per design

APPLICATIONS

 Metal & Machining:

  • Chip removal from CNC/VMC machines
  • Swarf handling in centralized filtration
  • Coolant sludge conveying

 Heavy Industry:

  • Foundry sand removal
  • Furnace slag and ash handling
  • ETP/STP sludge movement

Others:

  • Press scrap handling
  • Food industry waste transport
  • Bulk powder transport (with dustproofing)
ADVANTAGES
  • Handles wet, dry, fine, or coarse materials
  • Rugged and compact design
  • Ideal for automatic chip removal
  • Suitable for continuous or batch operation
  • Customizable for length, layout, discharge

SELECTION CHECKLIST

Selection Criteria

Consideration

Material Type

Chips, sludge, powder, wet/dry

Flow Rate or Load

Kg/hr or TPH

Horizontal or Incline?

Affects drive power and trough design

Trough Width & Length

Site space and layout

Chain Type & Strength

Depends on material load

Maintenance Access

Inspection covers, cleaning ports

Oil or Coolant Handling

Requires sealed troughs/drainage
