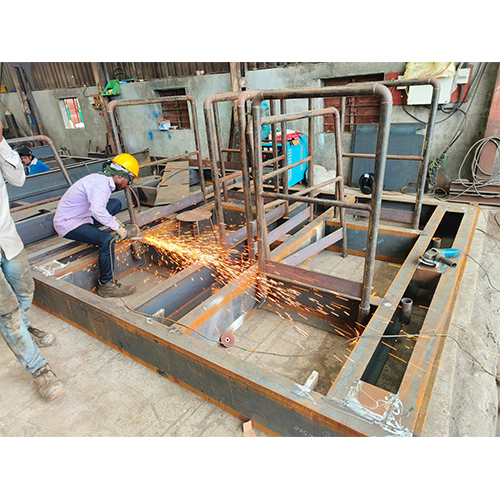

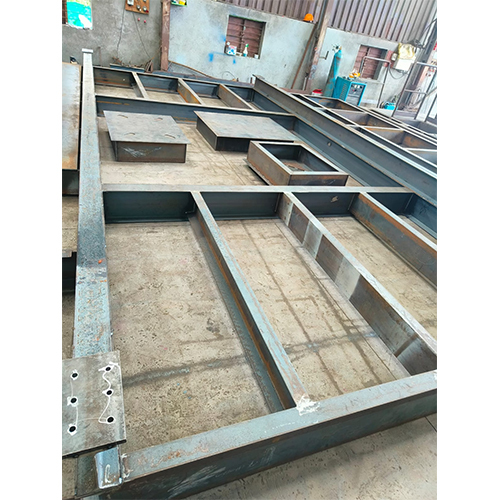

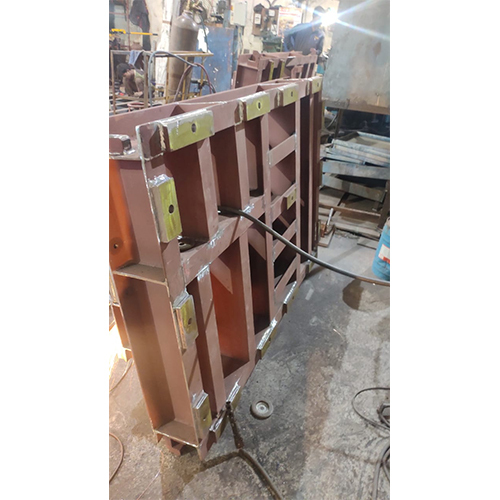

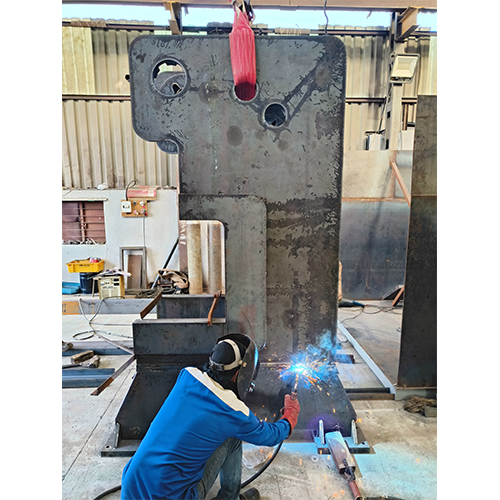

Machine Base Frame

Price 25000 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Machine Base Frame Specification

Usage
Machine Base Frame

Application
Industrial

Weight
100 To 10000 Kilograms (kg)

Surface Finishing
Smooth

Hole Size
3 T 100 Millimeter (mm)

Components
Base Frame

Dimension (L*W*H)
12000 X 2200 X 1200 Millimeter (mm)

Material
Steel, Stainless Steel

Tolerance
+ - 3 Millimeter (mm)

Thickness
3 To 20 Millimeter (mm)

Capacity
100 To 10000 Kg

Surface Treatment
Polishing, Galvanized, Powder Coating, Painting

Making Process
Assembling, CNC Punching, CNC Bending, Grinding, Laser Cutting, Mig Welding, Tig Welding, Stamping

Machine Base Frame Trade Information

Minimum Order Quantity
1 Unit

Supply Ability
10 Units Per Month

Delivery Time
30 Days

Main Domestic Market
All India

About Machine Base Frame

What is a Base Frame?

A Base Frame is a rigid structural frame or skid thatprovides support, alignment, and mounting for equipment or machinerysuch as pumps, tanks, motors, blowers, compressors, etc. It ensures mechanicalstability and ease of installation.

Function of a Base Frame

Supports mechanical load
Aligns the equipment (especially rotating machines)
Absorbs vibrations and dynamic forces
Distributes load to the foundation
Allows for lifting, transport, or anchoring

Types of BaseFrames

Type	Description	Use
Fabricated Base Frame	Made from steel plates and sections	Pumps, blowers, generators
Skid Base Frame	Integrated lifting pads, fork pockets	Mobile equipment
Grouted Base Frame	Designed to be fixed with foundation grout	Heavy rotating machinery
Modular Base Frame	Bolt-on style, adaptable	OEM assembly lines
Machined Base Frame	Machined surfaces for precise alignment	Gearboxes, CNC machines

Components of a Base Frame

Frame Structure ISMB/ISMC/Tube/Angle sections
Mounting Pads Equipment anchoring plates
Leveling Pads or Feet Adjustable for uneven surfaces
Foundation Bolt Holes For anchoring to RCC base
Lifting Lugs / Forklift Slots For mobility
Anti-vibration Mounts Optional for rotating machines
Drain Tray / Catch Pan Optional for wet areas

Materials Used

Component	Typical Material
Frame Body	MS (IS 2062 Gr A / B), SS304, SS316
Top Plates	MS/SS with machined surfaces
Fasteners	SS304, EN8, GI-plated
Finish	Epoxy painted, powder-coated, galvanized

TechnicalSpecifications (Typical Range)

Parameter	Range
Size	Custom Based on equipment size
Thickness	5 mm 25 mm plates
Load Capacity	50 kg to 50,000 kg
Height	100 mm 1000 mm
Finish	Epoxy paint / Hot Dip Galvanized / SS finish
