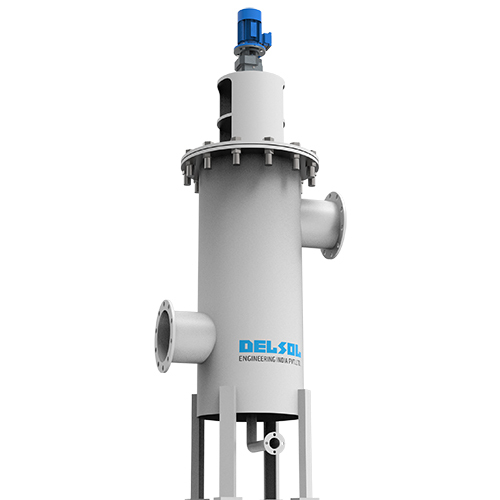

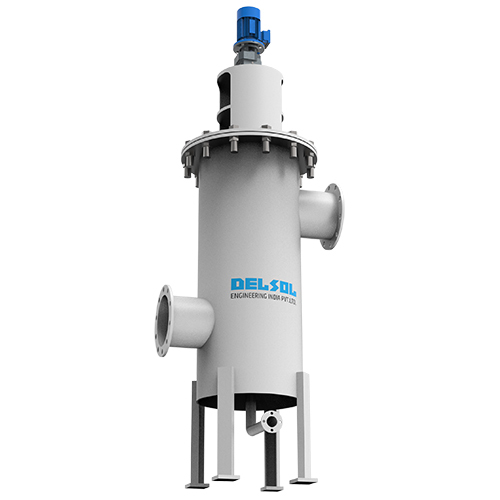

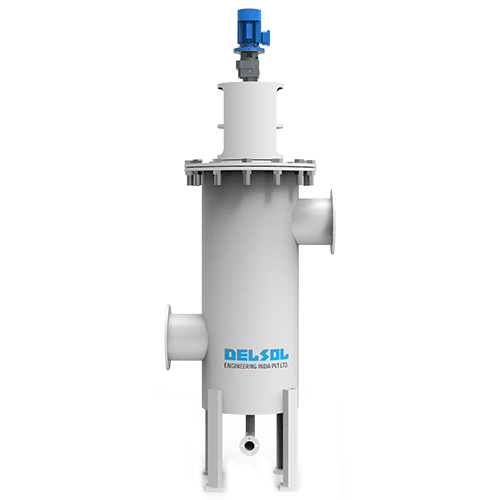

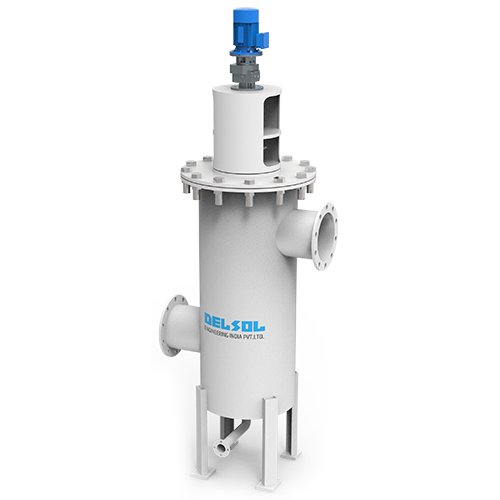

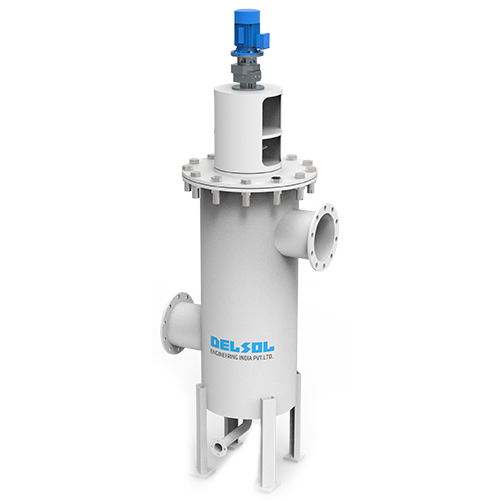

Self Cleaning Filter

Name: Self Cleaning Filter
Brand: Delsol Engineering India Pvt. Ltd
Price: 1200000 INR
Availability: InStock

Price 1200000 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Self Cleaning Filter Specification

Product Type
Self Cleaning Filter

General Use
Industrial Oil Filteration

Material
Stainless Steel

Capacity
300 To 9000 LPM Ltr

Weight (kg)
600 To 2000 Kilograms (kg)

Computerized
No

Automatic
Yes

Control System
PLC Control

Filter Area
50 LPM To 7500 LPM Square Millimeter (mm2)

Flow Rate
50 LPM To 7500 LPM

Voltage
440 Volt (v)

Motor
AC Motor

Feature
Lower Energy Consumption, Compact Structure, High Efficiency

Color
LAR 7035, Gray, Appel Green

Warranty
1 Years

Self Cleaning Filter Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash Advance (CA), Cash in Advance (CID)

Supply Ability
2 Units Per Month

Delivery Time
15 Days

Main Domestic Market
All India

Self Cleaning Filter About

SELF-CLEANING FILTER.!

WHAT IS ASELF-CLEANING FILTER?

A Self-Cleaning Filter is an automatic filtrationsystem that removes solid contaminants from liquid or slurry withoutrequiring manual intervention to clean the filter element. It uses mechanical,hydraulic, or pneumatic systems to clean the screen/filter without stoppingthe process.

WORKING PRINCIPLE

Unfiltered liquid enters the filter housing and passes through the screen/filter element.
Particles are trapped on the inner/outer surface of the filter element.
Once the differential pressure limit is reached, a cleaning cycle is triggered:

Rotating brush/scraper or suction nozzle removes contaminants.
Collected debris is discharged via automatic drain valve.

Filtration continues without process interruption.

TYPES OFSELF-CLEANING FILTERS

Type	Cleaning Mechanism	Suitable For
Brush Type	Rotating brush inside screen	Viscous liquids, slurries
Suction Scanner Type	Suction nozzle + scanner arm	High-flow water, utilities
Scraper Type	Rotating scraper system	Sticky or fibrous contaminants
Backwash Type	Reverse flow flush	Light solids, clear liquids
Motorized/PLC Type	Programmable cycle-based	Continuous process systems

KEY TECHNICAL FEATURES

Parameter	Typical Value/Range
Micron Rating	25 m to 3000 m (customizable)
Flow Rate	1 m/hr to 500 m/hr
Operating Pressure	Up to 10 bar (higher optional)
Housing Material	SS304 / SS316 / CS
Screen Material	Wedge wire, perforated, mesh
Cleaning System	Brush / Scraper / Suction / Backflush
Motor Power	0.18 kW to 1.5 kW
Automation	Differential pressure or timer-based
Drain Size	1" to 2", auto/manual drain valve

APPLICATIONS

Industrial Process:

Cooling tower water
Process water
Paints & resins
Injection molding machines
Sugar, pulp, textile wash water

Heavy-Duty Operations:

Steel and metal rolling mills
CIP systems in pharma/food
Surface treatment and ETP/STP systems

Utility & Water:

Municipal water filtration
Irrigation
RO pre-filtration
River water intake

ADVANTAGES

Fully automaticno manual cleaning
Works without flow interruption
Suitable for continuous processes
Reduces downtime and labor
Handles high solids loading
Energy-efficient & low maintenance

Advanced PLC-Controlled Operation

Our self-cleaning filter is managed by a sophisticated PLC control system, automating filtration processes to ensure minimal manual intervention. The result is superior consistency, reduced downtime, and a uniform output quality-ideal for intensive industrial environments where uninterrupted oil filtration is crucial.

Durable Stainless Steel Construction

Constructed from high-grade stainless steel, this filter is designed for longevity and resistance to corrosion in challenging industrial conditions. Its robust build supports heavy workloads while maintaining structural integrity, ensuring long-term reliability and lower maintenance needs.

Optimized for High-Volume Industrial Filtration

Engineered to handle flow rates between 50 and 7500 LPM (with capacity up to 9000 LPM), this filter is perfectly suited for large-scale operations. Its expansive filter area and compact design enable efficient oil filtration in sectors like manufacturing, maintenance, and processing.

FAQ's of Self Cleaning Filter:

Q: How does the self-cleaning filter maintain high efficiency during continuous operation?

A: The filter employs PLC (Programmable Logic Controller) automation to monitor and control the filtration cycle. This ensures timely cleaning processes, minimizes clogging, and maintains consistent flow rates, delivering high efficiency even during prolonged use.

Q: What types of industrial environments are best suited for this self-cleaning filter?

A: This filter is designed primarily for industrial oil filtration in sectors such as manufacturing plants, automotive production, and heavy machinery maintenance, where high flow rates and reliable continuous operation are essential.

Q: When should the self-cleaning mechanism be activated for optimal performance?

A: The PLC control system automatically initiates the cleaning process based on real-time monitoring of filter condition. Users can also program specific cleaning intervals according to operational requirements, ensuring optimal performance and minimal manual supervision.

Q: Where can these filters be installed within an industrial facility?

A: Thanks to its compact structure, the filter can be integrated directly into existing oil filtration systems or main oil supply lines. It is compatible with various industrial layouts due to its manageable dimensions and sturdy construction.

Q: What are the main benefits of using a stainless steel self-cleaning filter over traditional filtration systems?

A: Stainless steel construction ensures durability, corrosion resistance, and extended service life. Combined with the self-cleaning feature and energy-efficient operation, this filter offers reduced maintenance costs, improved filtration reliability, and operational efficiency.

Q: How does the filter's lower energy consumption impact overall plant operation?

A: With lower energy usage, the filter reduces operational costs and helps facilities meet sustainability goals. This makes it environmentally friendly while delivering consistent performance.

Q: What is the warranty coverage and how can support be accessed if needed?

A: The filter comes with a one-year warranty covering manufacturing defects. Support and service can be accessed directly through the manufacturer or supplier in India, ensuring prompt assistance where required.
